2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch

Name: 28 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
Brand: Formike
Price: 1 USD

Buy cheap 2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch product

Display Type : Small TFT LCD Screen Panel

Packaging Details : Tray + Inner Box + Carton

Controller Ic : ILI9341

Interface : 37 Pin, 8/16 BIT MCU

MOQ : 1 piece

Payment Terms : T/T, L/C, Credit card, Cash

Supply Voltage : 3.2V

Resolution : 240*320

Model Number : KWH028Q27-F02

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Product Name : 2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch

Brand Name : Formike

Operating Temperature : -20°C to 70°C

Viewing Angle : 6 O'Clock

Color : Color

Touch Screen : With resistive touch screen

Place of Origin : China

Supply Ability : 5000000000 pieces/year

Dimensions : 50.00mm x 69.20mm x 3.65mm

Display Size : 2.8 inch

Contact Now

2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch

Product Name	2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
LCD Size	2.8 Inch TFT LCD Display Module
Display Mode	Transmissive
Resolution	240x320
Outline Dimension (mm)	50.00x69.20x3.65
Active Area (mm)	43.20x57.60
Dot pitch (mm)	0.18x0.18
Viewing Direction	6 O'Clock
Interface	8 / 16 BIT MCU Interface, 37 Pin
Driver IC	ILI9341
Brightness (Cd/m²)	280
Contrast Ratio	300:1
Backlight	4 White LED In Parallel
Backlight Supply (Current/Voltage)	60mA 3.2V
Touch Screen	With Resistive Touch Screen

* KWH028Q27-F02 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, RTP.

* It is 240x320 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch

Product Tags:

Resistive tft lcd display panel

ILI9341 tft lcd display panel

240x320 panel tft lcd

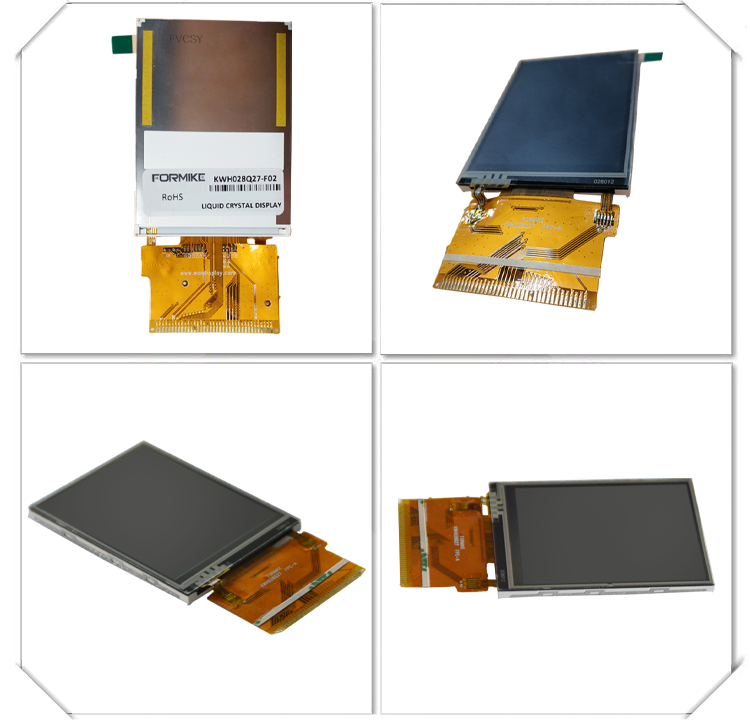

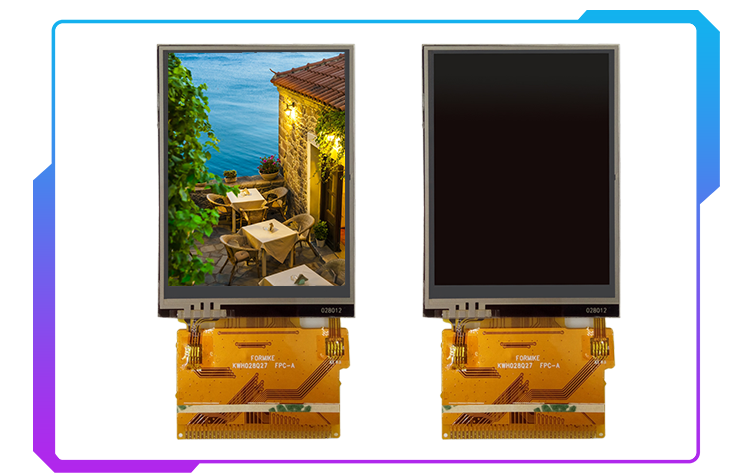

2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch Images
